Standard grade HTV silicone rubber-iota

Recommend

Standard grade HTV silicone rubber

IOTA Standard grade HTV silicone rubber

This product has flexible processability and comprehensive physical properties, excellent yellowing resistance and superior aging resistance at temperature of - 50 to 200℃. The rubber for molding is vulcanized with 2,5-Dimethyl-2,5-di(tert-butylperoxy)hexane as vulcanizator, applicable to manufacturing of various keypads for electronic & electric appliances, electrical insulations, automotive accessories, industrial & civil seal rings, miscellaneous parts and transparent pieces, etc. The rubber for extrusion is vulcanized with vulcanizator DCBP (Di-(2,4-dichlorobenzoyl) Peroxide), applicable to variousthermotolerant & cold resisting electric wires, cables and sheaths. This product is available as a milk-white translucent finished product, or compound with curing agent & pigment, or sliced product.

Typical Properties:

Category	Item	Appearance	Hardness Shore A	Tensile strength MPa≥	Elongation at break %≥	Breaking set %≤	Tear strength B KN/m≥	Specific density 25°C g/cm³	*Compression set 18022h %**≤	Resilience %≥
For molding	MY D131	Ivory translucent	30±2	6.0	600	6	15	1.08±0.05	35	65
	MY D141		40±2	6.5	400	6	19	1.13±0.05	35	60
	MY D151		50±2	8.0	350	7	22	1.15±0.05	30	55
	MY D161		60±2	8.0	300	7	22	1.19±0.05	30	50
	MY D171		70±2	7.5	220	6	20	1.22±0.05	30	45
	MY D181		80±2	7.0	180	5	18	1.25±0.05	25	45
	MY D191		86±2	4.0	80	6	10	1.26±0.05	25	40

Physical data in the above table is for reference only.

Vulcanization condition: 175℃× 5Min.

Ratio of curing agent 2,5-Dimethyl-2,5-di(tert-butylperoxy)hexane：0.65%.

Advantage:

- Good processability

- Excellent comprehensive physical properties

Applications:

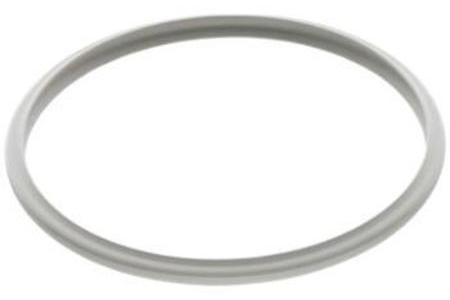

- Keys, miscellaneous part, industrial and civil translucent silicone rubber product

Category	Item	Appearance	Hardness Shore A	Tensile strength MPa≥	Elongation at break %≥	Breaking set %≤	Tear strength B KN/m≥	Specific density 25°C g/cm³	Dielectric strength kV/mm ≥	Volume resistivity Ω.cm≥
For extrusion	MY D251 wire	Ivory translucent	50±2	8.0	440	14	20	1.18±0.05	20	*3.010**¹⁴
	MY D251 tube		52±2	7.5	380	12	20	1.18±0.05	20	*3.010**¹⁴
	MY D261 wire		60±2	7.5	380	14	22	1.20±0.05	20	*3.010**¹⁴
	MY D261 tube		62±2	7.5	300	12	22	1.20±0.05	20	*3.010**¹⁴
	MY D271 wire		70±2	7.5	250	14	20	1.22±0.05	20	*3.010**¹⁴
	MY D271 tube		71±2	7.5	200	12	20	1.22±0.05	20	*3.010**¹⁴
	MY D281 wire		80±2	7.0	180	10	20	1.25±0.05	20	*3.010**¹⁴
	MY D281 tube		80±2	7.0	160	10	20	1.25±0.05	20	*3.010**¹⁴

Physical data in the above table is for reference only.

Vulcanization condition: 175℃× 5Min.

Ratio of curing agent 2,5-Dimethyl-2,5-di(tert-butylperoxy)hexane：0.65%.

Advantage:

- Standard grade for extrusion

- Flexible processability

- Flexible comprehensive physical properties

Application:

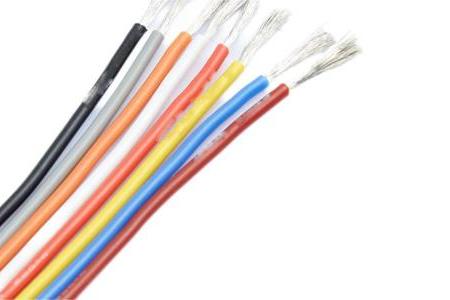

- Electric wires, cables, sheaths, industrial and civil translucent silicone rubber tubes and sealing strips

Packing & Storage:

- 20kg/ carton lined with plastic bags or sheets.

- The products have a shelf life of 9 months from date of manufacture depending on the shore hardness if stored at room temperature in the originally sealed container.
